Xilinx JTAG – HS2, HS3, Platform Cable USB II

Xilinx JTAG 케이블 종류가 많은데 숫자가 보통 높은걸로 선택하는데 이것은 JTAG HS2 가 호환성이 더 좋은듯

Digilent FPGA 보드를 많이 쓰니, 해당 회사에서 만든 제품으로 알아보자!!



https://digilent.com/reference/programmers/jtag-hs2/reference-manual?_ga=2.209894997.1913691520.1700123539-2102363698.1698815413#supported_target_devices

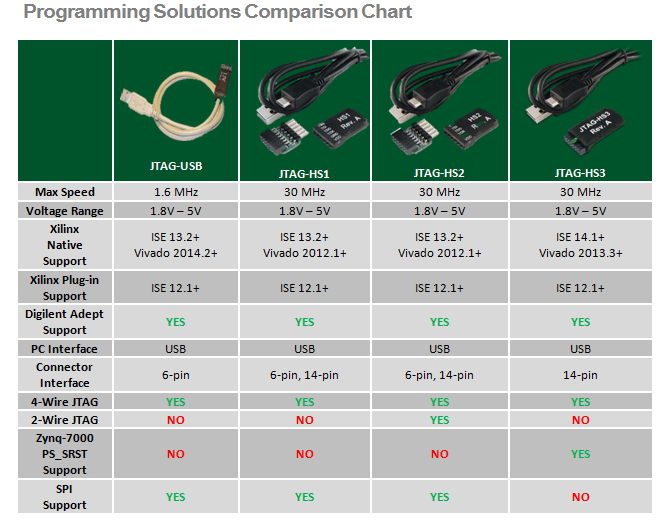

Xilinx JTAG 케이블

• Is JTAG-HS2 is compatible with Artix 7 series FPGA?

@vertika.s, Yes, it is compatible. You can view the full supported
Artix 7 시리즈는 HS2 가 호환된다는 답변이 있네요.

Supported Target Devices

The JTAG-HS2 is capable of targeting the following Xilinx devices:

1. Xilinx FPGAs, including UltraScale+
2. Xilinx SoCs, MPSoCs, and RFSoCs, including Xilinx Zynq-7000 and Zynq UltraScale+
3. Xilinx ACAPs, including Versal
4. Xilinx CoolRunner™/CoolRunner-II CPLDs
5. Xilinx Platform Flash ISP configuration PROMs
6. Select third-party SPI PROMs
7. Select third-party BPI PROMs

The following devices cannot be targeted by the JTAG-HS2:

1. Xilinx 9500/9500XL CPLDs
2. Xilinx 1700 and 18V00 ISP configuration PROMs
3. Xilinx FPGA eFUSE programming

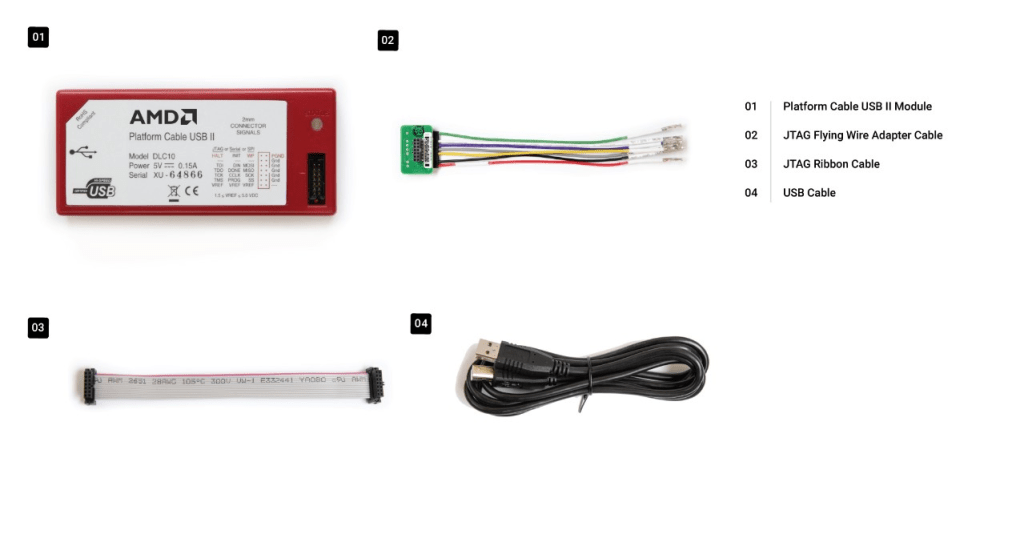

Platform Cable USB II

https://www.xilinx.com/products/boards-and-kits/hw-usb-ii-g.html

전통적인 공식 프로그래머 – 200불 정도 하네요

https://docs.xilinx.com/v/u/en-US/ds593 – 데이터시트

Table 3: Maximum JTAG Clock Frequencies
Device Family Maximum JTAG Clock Frequency (MHz)
Zynq-7000 66 MHz
Virtex-7 15–66 MHz
Kintex-7 15–66 MHz
Artix-7 15–66 MHz
